China Merchants Bank
2025-09-03 12:10:49
LikeShare
|
China Merchants Bank is China's first joint-stock commercial bank wholly owned by corporate legal persons and the sixth largest bank in mainland China. China Merchants Bank has more than 1,800 branches in more than 110 cities in mainland China, 1 branch-level franchise (credit card center), 1 representative office, 2,330 self-service banks, and one branch in Hong Kong. The development goal of China Merchants Bank is to become the leading retail bank in China. China Merchants Bank has always been customer-oriented and provides users with the most comprehensive and high-quality customer services.
|
▊ User Requirements
China Merchants Bank as the scale of the sixth largest bank in the country 's major cities have more than 1800 branches, 2300 Duo self-service banking. To promote the Digital Transformation Strategy, China Merchants Bank plans to upgrade their wireless network in nationwide.
Before network upgrade, China Merchants Bank's national business outlets had different levels of wireless network construction. Some branch used the wireless networks with SSID: CMCC, ChinaNet, and ChinaUnicom which is operated by ISP, some branch still uses the router for family user, some branches even don’t have wireless networks. According to user feedback, the overall wireless network experience is not ideal, the network is not stable and the speed is low, while the wireless network has a security risk issues, the overall wireless network cannot achieve centralized management and control, while China Merchants Bank spends millions of funds each year in advertisement marketing, after upgrade all the network, on the one hand, it can solve the exist wireless network problem, make network more secure, faster , more stable, also it can make sure that network can provide customers good and fast network experience, on the other hand, the branch can use wireless network for value-added marketing, promote China Merchants Bank mobile application to customer, use data analysis to promote China Merchants Bank's wealth management and event information, and transfer wireless investment into productivity to continuously create value.
▊ SUNDRAY Solution
In response to the current situation and problems of the wireless network construction of China Merchants Bank's national branches, combined with the technical characteristics of Sundray products, Sundray provides a complete solution. The solutions include:
(1) Wireless Internet --- Provide ultimate wireless internet experience for the users who come to handle business;
(2) SMS Authentication --- users access the Internet through SMS authentication, enter the mobile phone number to obtain the verification code, one-click to access to internet, fast and convenient;
(3) Advertising and Marketing --- Push the advertisement information of China Merchants Bank's specialty products and services to users who are in waiting area, to save China Merchants Bank 's investment in advertising and marketing;
(4) Passenger Flow Analysis ---The wireless controller integrates big data analysis function, which can collect and analyze the user data of each branch, and analyze the flow status and user information of each branch;
(5) Unified Management and Control --- Remove part of the existing wireless network, adopted Sundray unified wireless and wired management solution, in Shenzhen headquarters we deploy two wireless controllers, via the internet to achieve all nationwide branches AP centralized management.

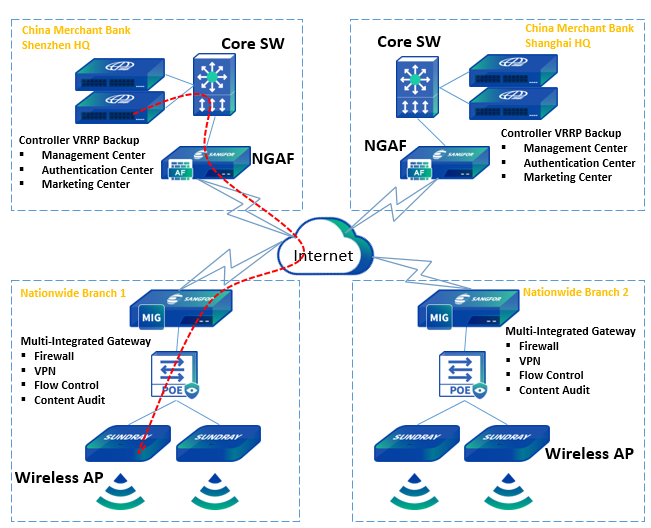

▊ SUNDRAY Wireless Solution
- In China Merchants Bank Central Office deploy 2 wireless controllers, via the VPN connection, all nationwide nearly 1 800 branches, 7000 pcs 802.11AC high performance AP are connected to HQ controller for management, wireless controller connected to the core switch and works in bridge mode. With this kind of deployment method, there is no need to change the topology of the original network. Also with High Availability VRRP group, 2 controller form 1+1 backup. Meanwhile in Shanghai HQ server room, there deployed 2 wireless controllers, with central management feature, it can achieve the load balance and off-site backup. The controllers in Shenzhen and Shanghai, each HQ responsible for half of nationwide AP, not only improves the overall network performance, and further protect the country stability and reliability of the network;
- In each branch, there deploy about 4 to 6 pcs 802.11 AC high performance AP, and additionally deploy an AP with anti-phishing feature to scan the wireless signal around, protect the wireless user access security in real-time;
- Each branch deploys multi-integrated gateway for internet connection, AP connect to gateway for internet. With internet AP can connected to the HQ controller and achieve access control, audit, traffic management, VPN, etc.

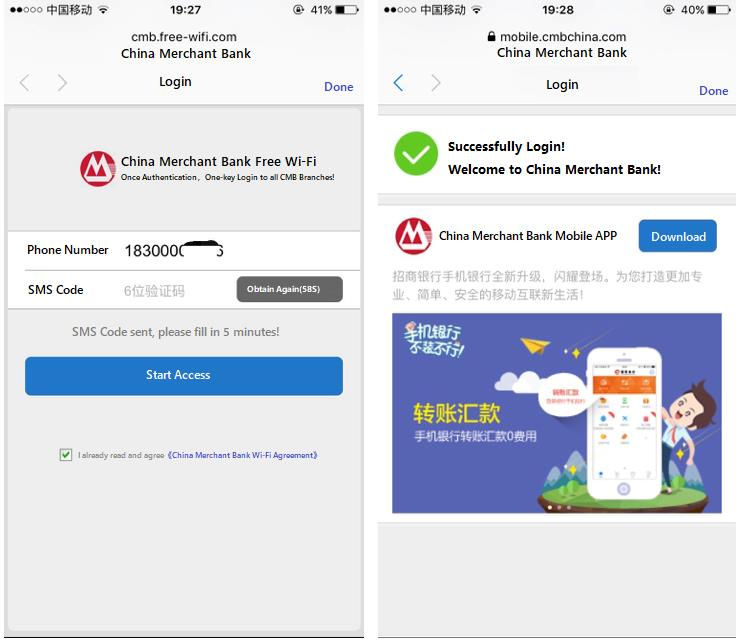

- In wireless controller there integrated SMS authentication platform, customers connect to the internet by getting the code from SMS gateway for authentication. At the same time, the info such as phone number, terminal MAC address etc., will be send to the controller to support implement real-name management and control and real-name phone number audit;
- The audit data is aggregated into the China Merchants Bank data center, collecting user web browsing, APP usage and other online behavior data, combined with the user network identity information collected by the wireless controller, to achieve financial big data analysis.
▊ Competitive advantage
Advantages of Management and Maintenance:
- By deploying wireless controller in HQ, China Merchants Bank achieves unified management of the entire network of all branches AP, easily to operation and maintenance, and by IPsec stable VPN connection to keep secure and fast data transformation;
- Through multiple levels of grouping and convenient management of the national AP, can progressively establish province-city-branch-detail location of AP, to achieve AP 's batch configuration management, illegal signal positioning, interference positioning, etc., and can establish a national hot spot map, visualize each key network operation information such as the online status, number of people connected, online users, and real-time traffic of each AP;
- Simplest design, in wireless controller built-in wireless operation and maintenance management platform, marketing value-added platform, authentication center, data collection platform, edge security center, without having to deploy a separate additional device, directly via WEB interface network platform to central manage the whole network carry out;
Safe and Reliable Advantages:
- National Unified SMS real-name authentication. Users enter mobile phone numbers to access to the Internet, use the mobile phone number as the user name, and record the terminal MAC address. Linked network integration gateways implement real-name management and real-name audit;
- Combined with IPsec VPN tunnel to realize the encrypted transmission of data across the Internet between the HQ and the national branches, to prevent data from being stolen or tampered, and to ensure the security of data transmission;
- Sundray wireless anti-phishing Wi-Fi function can prevent the risk of hacker phishing Wi-Fi, which effectively protect the internet access security of customers in public areas of China Merchants Bank branches;
- By the off-site backup in different locations, when one of wireless controller down when system failure, immediately switch to the other management center, to ensure that the national network of the wireless network still works well;
- Sundray wireless controller built basic wireless firewall functions, which can defense the typical DDOS attack, the DHCP request flood attacks, ARP spoofing, port scanning, IP scanning and other multiple attack, to ensure the wireless network safe and stable operation;
Advantages of marketing value-added:
- Simplest design to effectively reduce construction and operating costs. The wireless controller has built-in marketing push platform, SMS authentication platform, and passenger flow data collection platform, which can directly carry out advertising marketing, big data analysis and other functions without the need to separately deploy additional equipment.
- Via SMS authentication to achieve extremely simple access authentication mode, and collect the user's mobile phone identity information, visit time, frequency and other information for big data analysis, to further enhance the value of the wireless network;
- Through the variety of advertising marketing methods, wireless controller marketing platform can achieve exclusive precision marketing function, including user access location, user application behavior;
- With internal hard disk wireless controller can collect data and store it locally to ensure data safety and reliability, without worrying about the disclosure of customer information, while opening up external synchronization, data interfaces, big data analysis according to their needs;
▊ Customer Value
China Merchants Bank nationwide branches wireless network construction , it break the barriers that the traditional wireless network only for internet access, also provide customers with more secure , more quickly and more stable wireless network at the same time , using a wireless network platform for advertising and marketing, Big data analysis and other functions, which allows Wi-Fi to carry more services, generate more and sustained business value for customers , and turn wireless networks into continuous productivity that creates business value .
The successful completion of this project, not only to help users solve the issue of slow network and weak stability,
but also through the wireless controller built- in advertising marketing, authentication platform , data analysis capabilities, to help customers save the year nearly a million of advertising marketing, purchasing data cost; The success of this project , help Sundray expand the space in the broader financial sector applications, and we look forward to cooperate with China Merchants Bank to create the future of wireless network development of a new era.

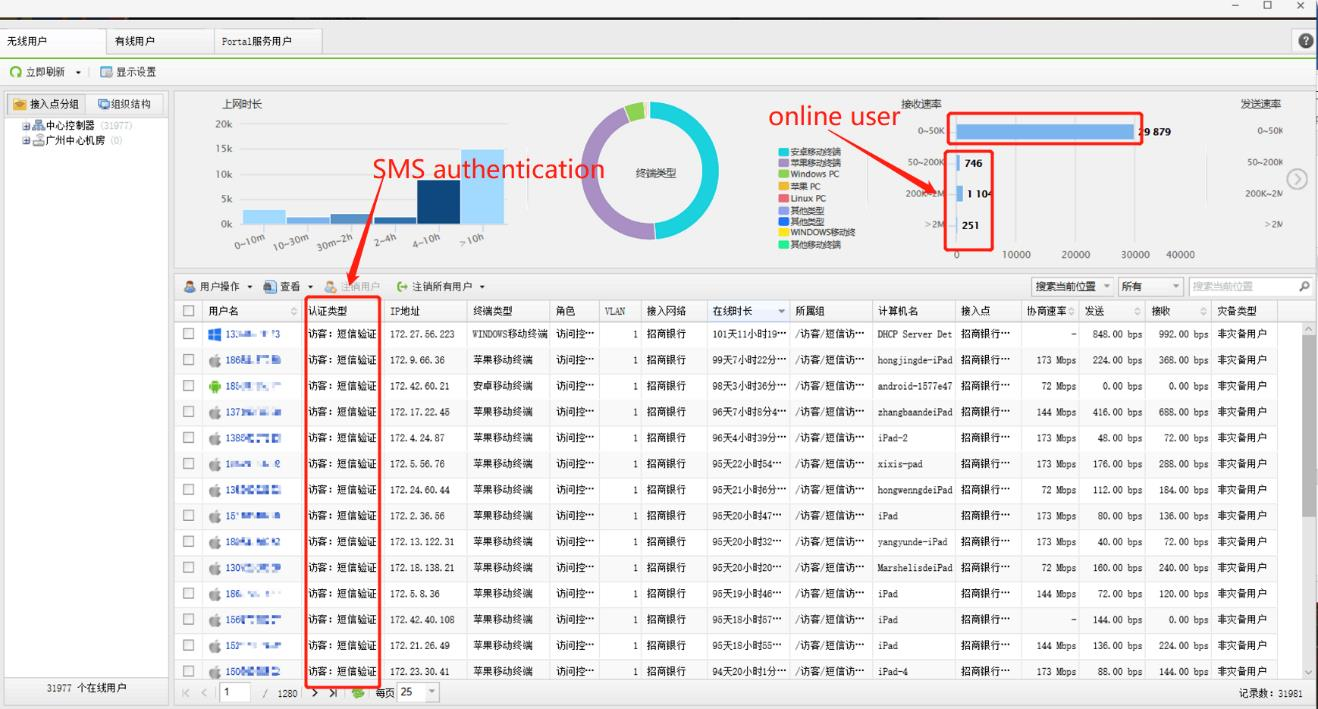

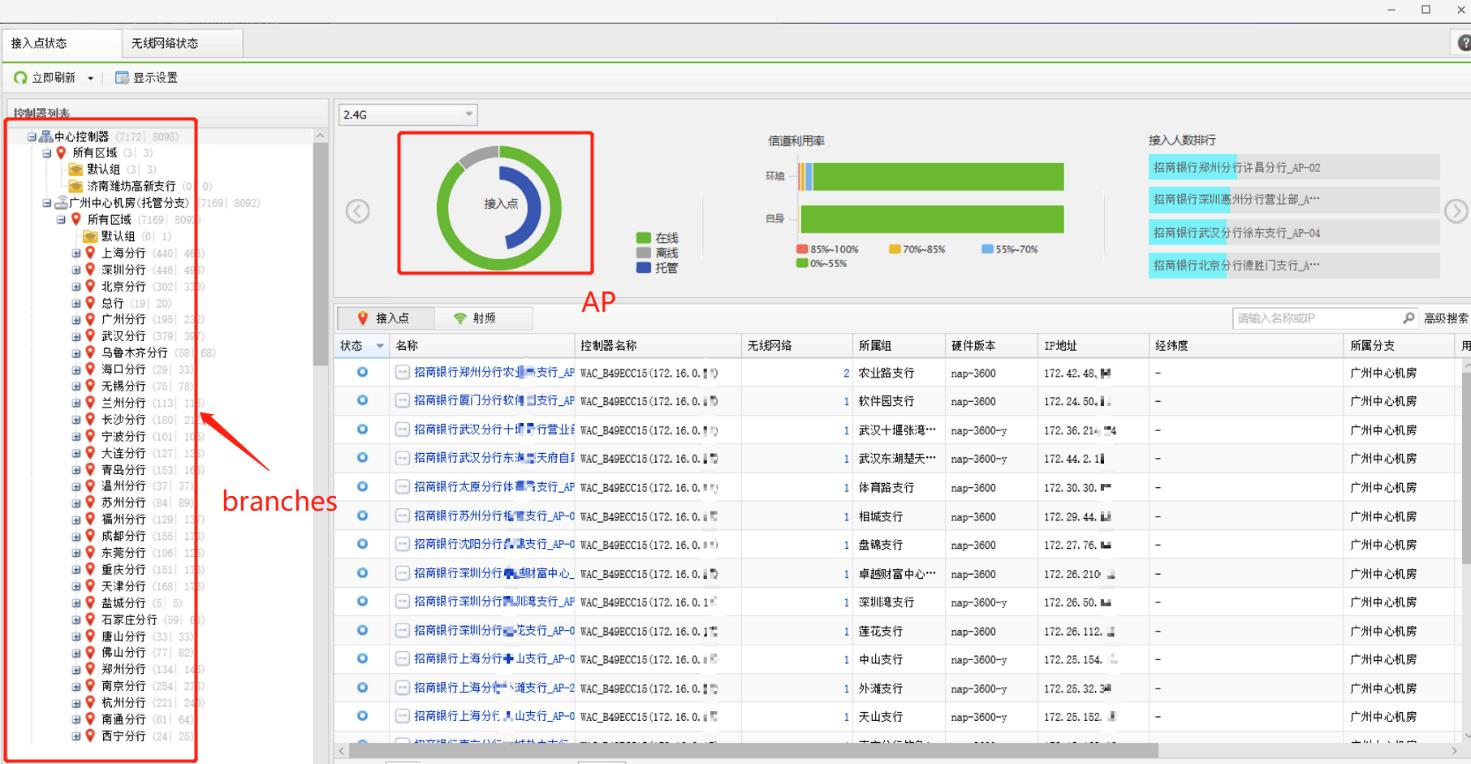

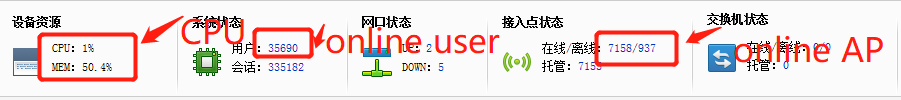

China Merchants Bank actual results show:
