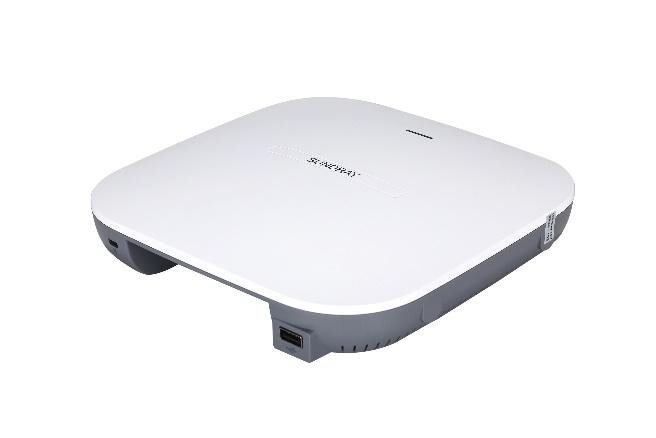

SUNDRAY NAP-3825-X(SR) is a new-generation 802.11ax Turbo Sense wireless access point., it adopts triple-band smart antenna, support MU-MIMO, OFDMA and 1024QAM modulation and demodulation algorithm, 160MHz channel bandwidth, it's wireless transmission speed can be up to 3.843Gbps, a higher wireless access rate and wider wireless coverage are provided. NAP-3825-X(SR) can easily meet all kinds of wireless services, such as video, voice and other multimedia services, and provide intelligent radio frequency, service quality assurance, seamless roaming and so on.
NAP-3825-X (SR) supports innovative AI RF chips. The independent AI RF can actively sense the wireless network's service quality, environment quality, and security, in cooperation with the SUNDRAY NAC series controllers, NAP-3825-X (SR) brings an intelligent and better users experience.
NAP-3825-X(SR) adopts the GE port for uplink, ensuring high-speed wireless transmission can be powered via POE or local power adapter, the AP is aesthetically designed and can be conveniently mounted on the ceiling, wall, or placed on the desk.
Specification
Product Model
NAP-3825-X(SR)
Wireless Protocol
802.11a/b/g/n/ac/ax
Number of Interfaces
1 × Gigabit Ethernet Port 1 × RJ45 Console Port 1 × USB Port
RF Design
Independent Triple RF
Space Flow
6 streams
Operating Frequency Band
2.4GHz、5GHz(5.1GHz、5.8GHz)
Operating Temperature
Operating Temperature:-10℃~55℃
Overall System Rate
3.843Gbps
Antenna Type
Built-in Matrix Smart Antenna
Transmit Power
≤20dBm
Product Value
Comprehensive Security Protection for User Network Access
Safeguarding the Network with AI Intelligence
Enjoying an Exceptional Internet and Network Management Experience
