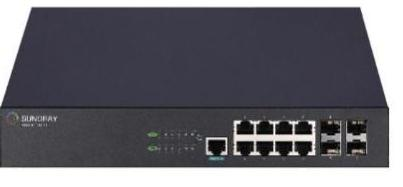

RS3320-12M-LI
The RS3320 V-Sec Series are the next-generation intelligent switch independently developed by SUNDRAY. The V-Sec Switch adopts a SDN architecture design, the Switch can be managed by the SUNDRAY NAC Controller with zero configuration, just like the AP in the thin mode. 100% the functions of the switches can be configured via the NAC controller, including VLANs, Authentication, STP, Routing, DHCP Server, M-LAG, IGMP, VRRP, etc.
The NAC can monitor and visualize the status, including the switch load, port forwarding rates, east-west traffic, etc. also has more security features than traditional switches, and can interact with wireless networks and security devices to achieve a more secure network management and control.
RS3320 series switches are in the leading position among similar products, can meet the networking requirements of large-scale networks, and possess rich intelligence and security features. They are particularly suitable as access devices for large campus networks, enterprise networks, and IP metropolitan area networks.

    Specification

    • Product Model

      RS3320-12M-LI

    • Interface Count

      8 * 10/100/1000Base-T ports, 4 * 1G/2.5G SFP ports

      1*Console port

    • Switching Capacity and Packet Forwarding Rate

      Switching Capacity：672Gbps/6.72Tbps

      Packet Forwarding Rate：102Mpps/126Mpps

    • Maximum Power Consumption

      ≤13.2W

    • Work Temperature Operating and Humidity

      Work Temperature：0℃～45℃

      Work Humidity：5%～90% (RH non-condensing)

    • Storage Temperature and Storage humidity

      Storage Temperature: -20ºC～70ºC

      Storage humidity: 5%～95% RH (non-condensing)

    • Weight

      1.3kg

    • Dimensions (mm)

      280x180x44 (mm)

    Product Value

    Security：Comprehensive Security Protection
    Security：Comprehensive Security Protection

    Comprehensive Security Protection：terminal security, authentication security, East-West traffic security

    Excellent Synergy Effects：security collaboration for mutual defense

    Intelligence：Hassle-free Intelligent Operations and Maintenance
    Intelligence：Hassle-free Intelligent Operations and Maintenance

    More accurate perception measurement：independent AI chip

    Faster Analysis and Diagnosis ：Invisible inspections, panoramic operations and maintenance, service chain, path chain, anomaly disposal model, event center, reporting center

    Experience：Ultimate Network Experience
    Experience：Ultimate Network Experience

    More Stable Network Usage: Robust chassis stability design, separation of control and forwarding

    More Convenient Network Management: Intelligent topology, visual management configuration
